Ceramic Filter Plate
Microporous Ceramic Vacuum Filter Element for Solid-Liquid Separation
Product Information
Ceramic filter plates are the core filtration components of vacuum ceramic filter systems, designed for high-efficiency solid-liquid separation in mining, chemical processing, and environmental applications.
Manufactured from high-grade Al₂O₃ (alumina) or SiC (silicon carbide) through high-temperature sintering (1500–2100°C), these plates feature a uniform microporous structure with interconnected capillary channels.
This unique structure enables selective permeability—allowing liquid to pass while retaining solids and preventing air penetration—resulting in excellent dewatering performance and low moisture content.
Product Advantages
Ultra-Fine Filtration Precision
- Pore size: 0.1–10 μm
- Suitable for ultra-fine particles
✔️ Long Service Life (3–5× Traditional)
- Wear-resistant ceramic structure
- Anti-scratching ≥7000 hours
✔️ High Efficiency & Low Energy
- High filtration flux
- Reduced vacuum energy consumption
✔️ Strong Chemical & Corrosion Resistance
- Acid & alkali resistant
- Suitable for harsh environments
✔️ Anti-Clogging & Easy Regeneration
- Uniform pore structure
- Cleaning methods:
- Backwash
- Ultrasonic cleaning
- Chemical cleaning
✔️ Stable Performance
- No deformation under pressure
- Consistent filtration accuracy
Technical Specifications
| Parameter | Value |
|---|---|
| Filtration Flux | 800–1000 L/m²·h (0.1 MPa) |
| Backwash Pressure | ≤0.1 MPa |
| Ultrasonic Cleaning Pressure | ≤0.1 MPa |
| Porosity | ≥42% |
| Flexural Strength | ≥30 MPa |
| Pore Size | 0.1–10 μm |
| Wear Resistance | ≥7000 hours |
| Max Pressure Resistance | Up to 8 bar |
| Plate Precision | ±0.1 mm |

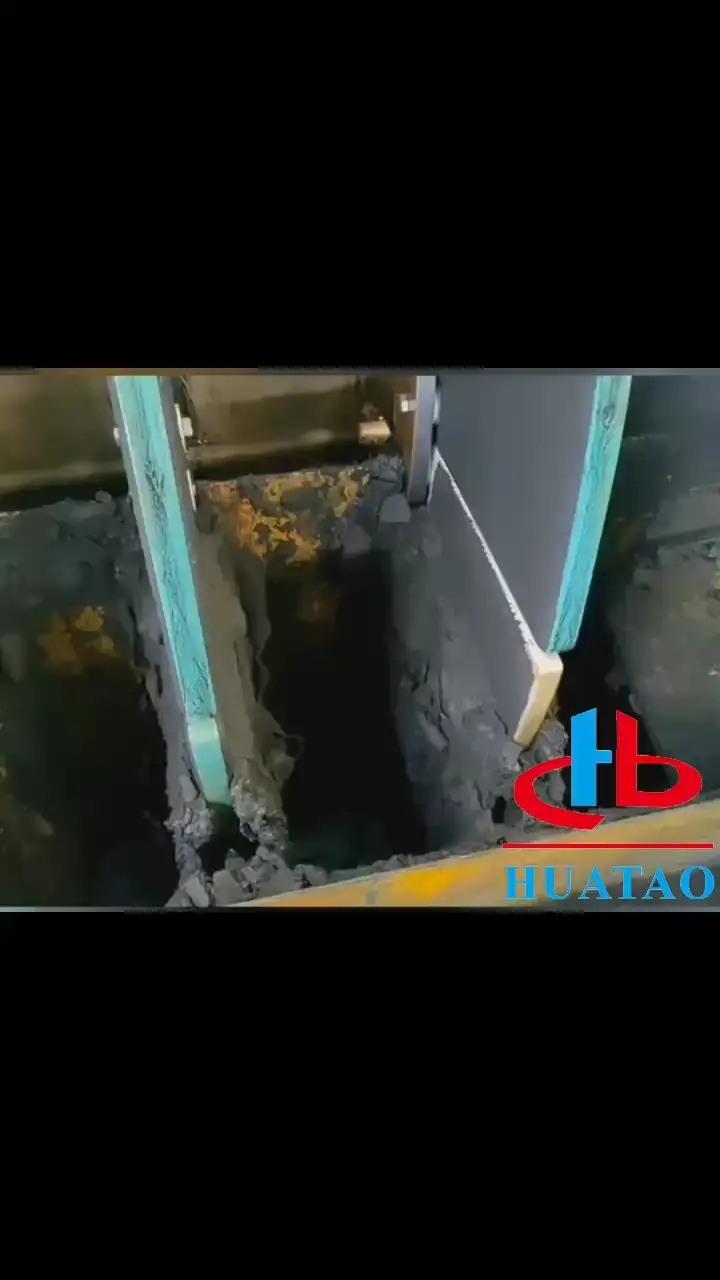

Cerimic Vacuum Filter Spare Parts Photo show
