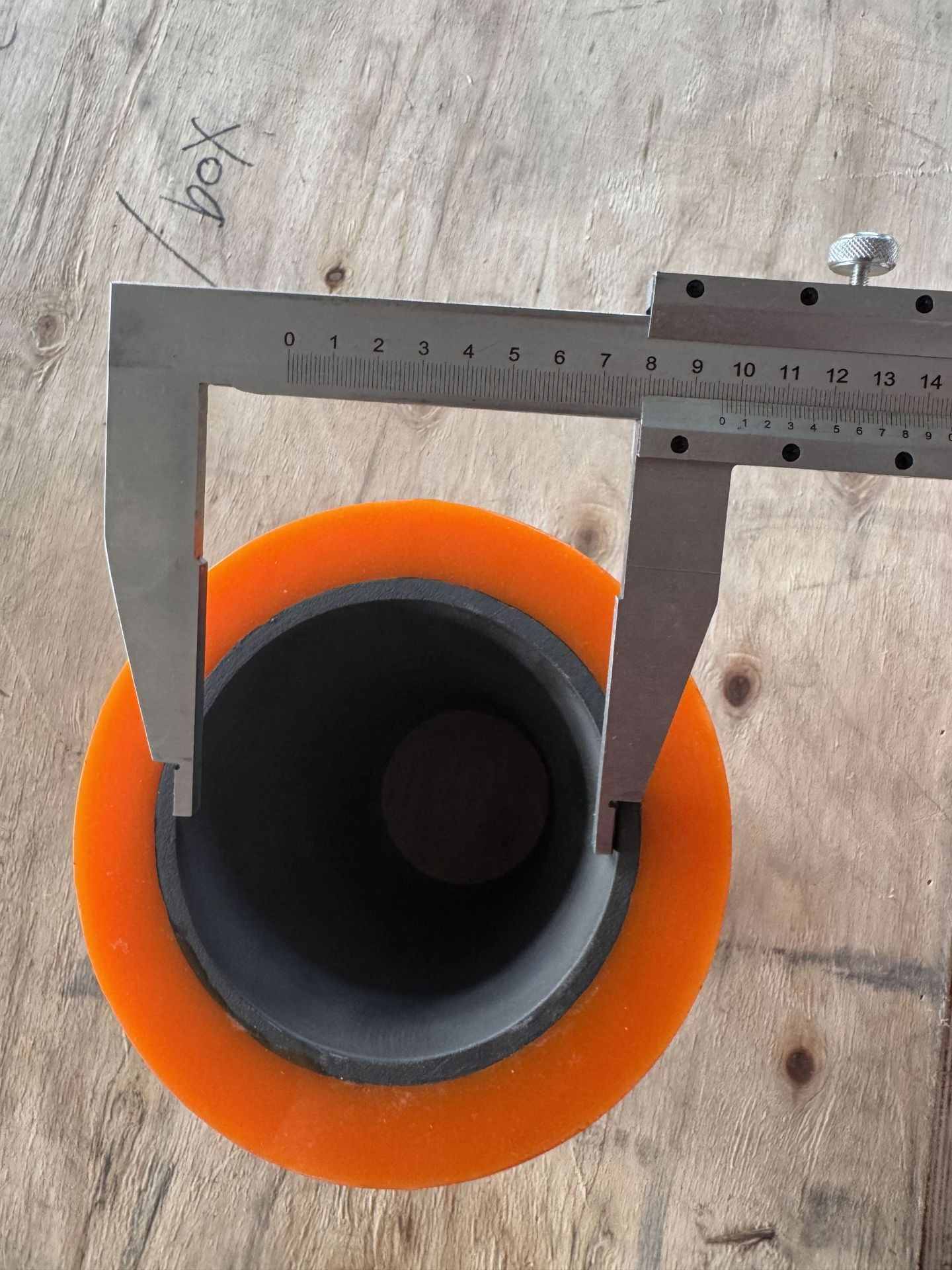

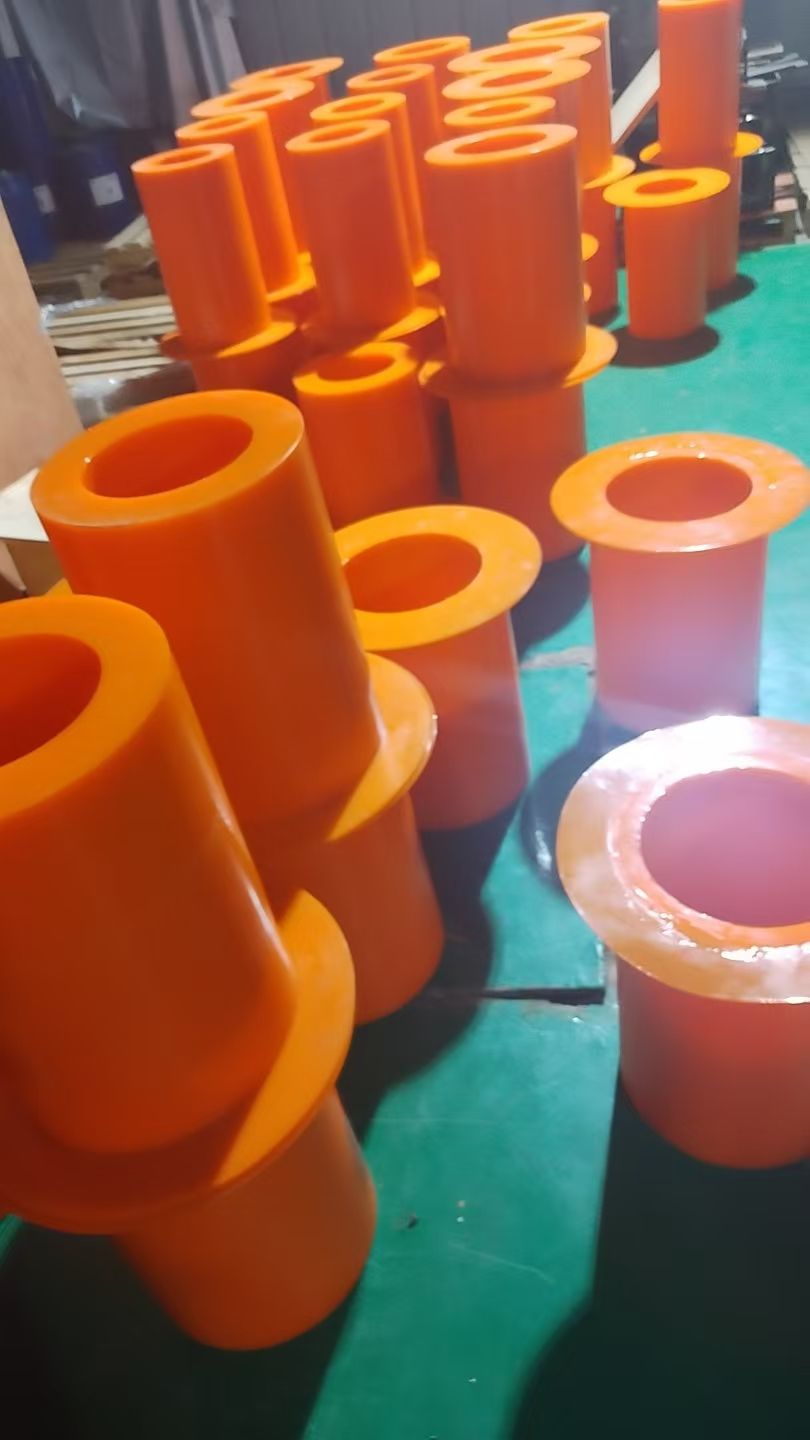

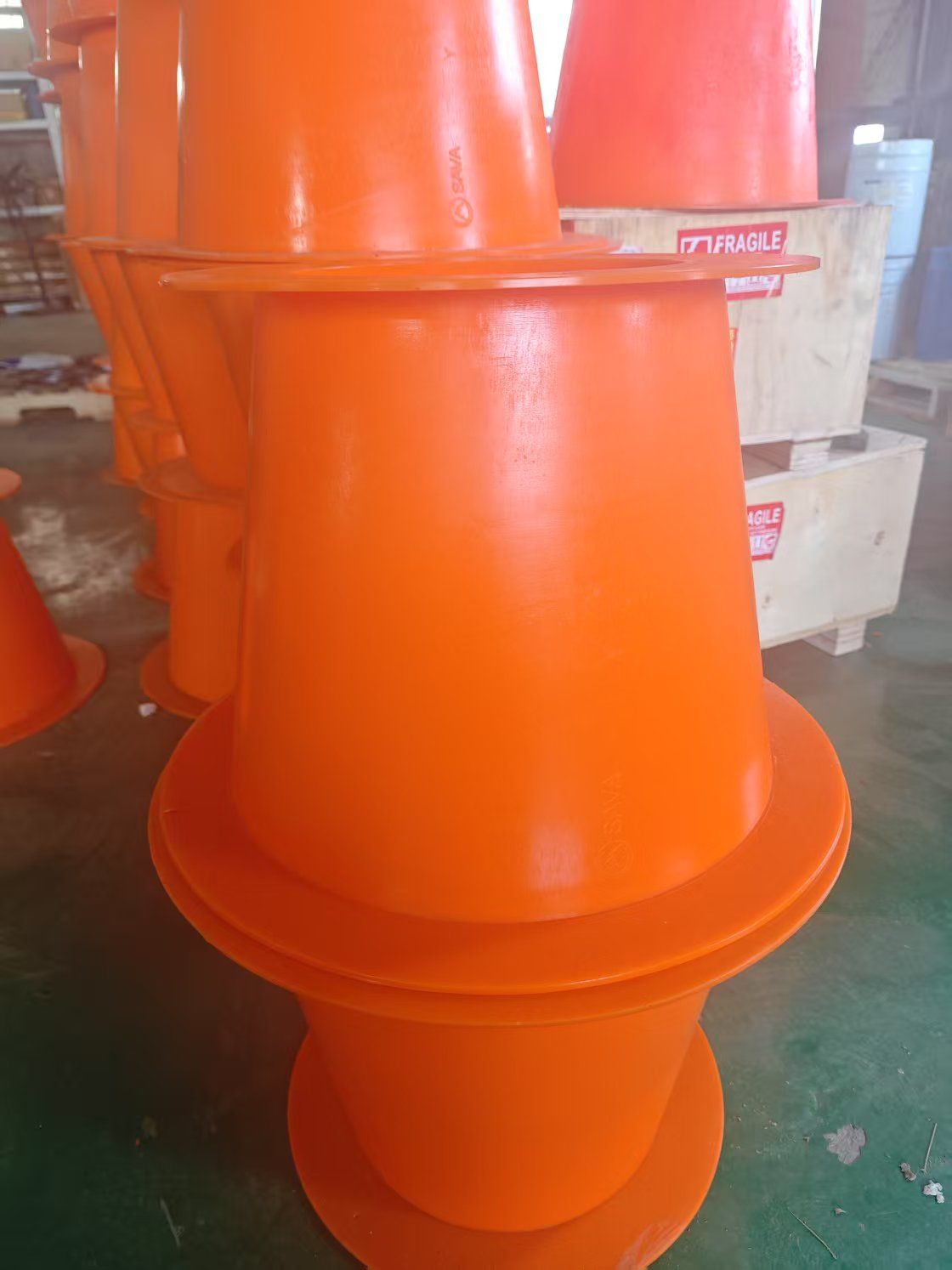

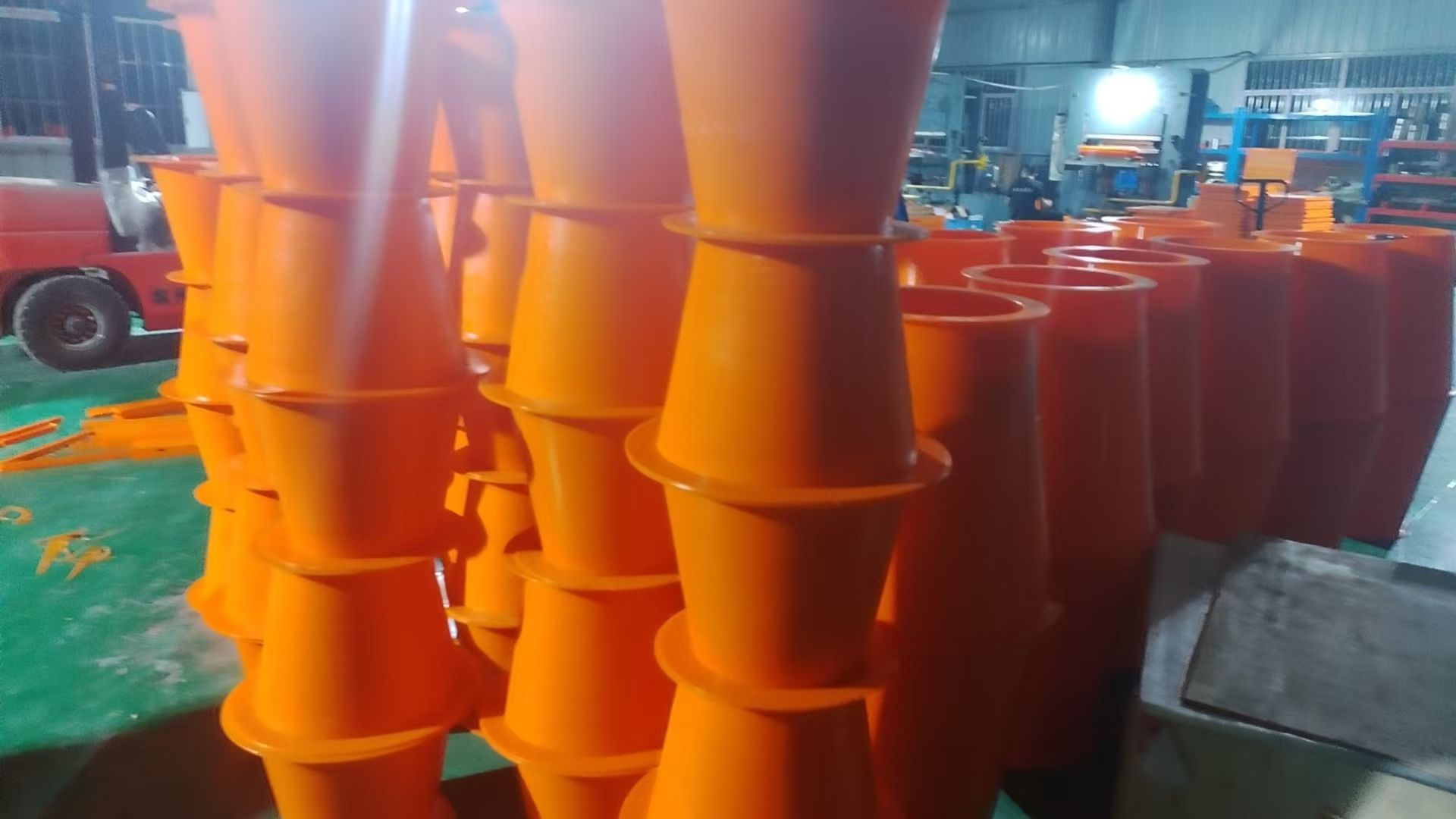

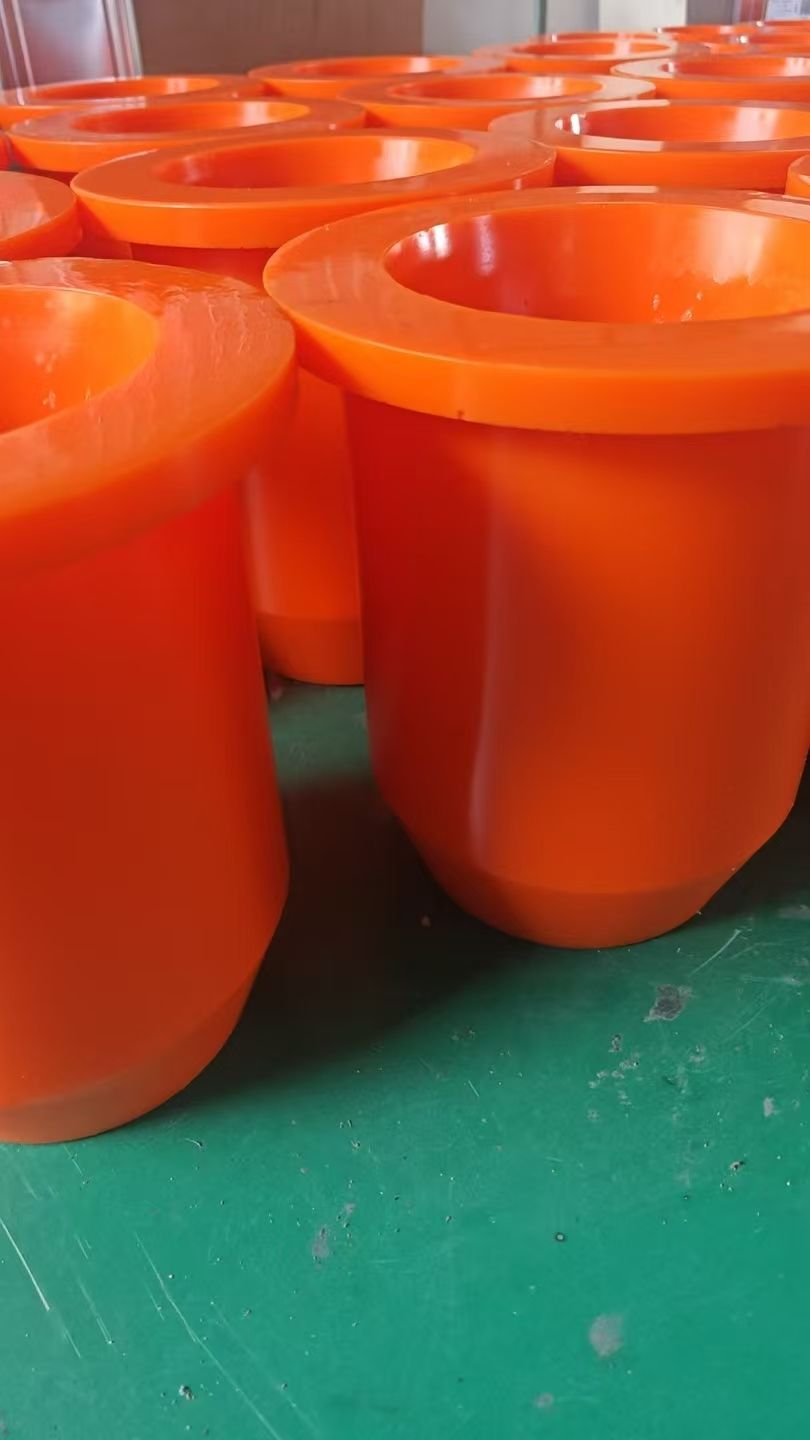

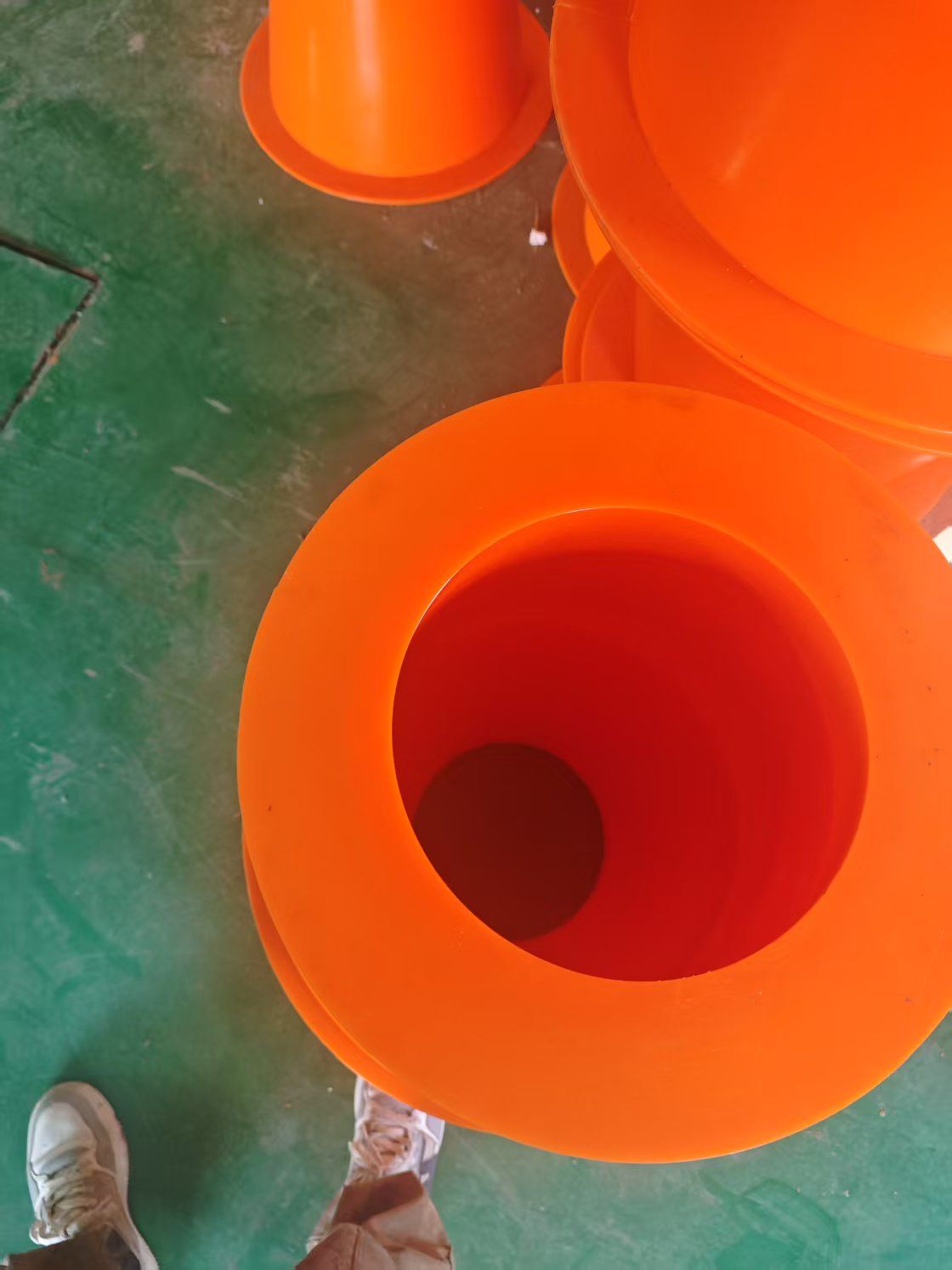

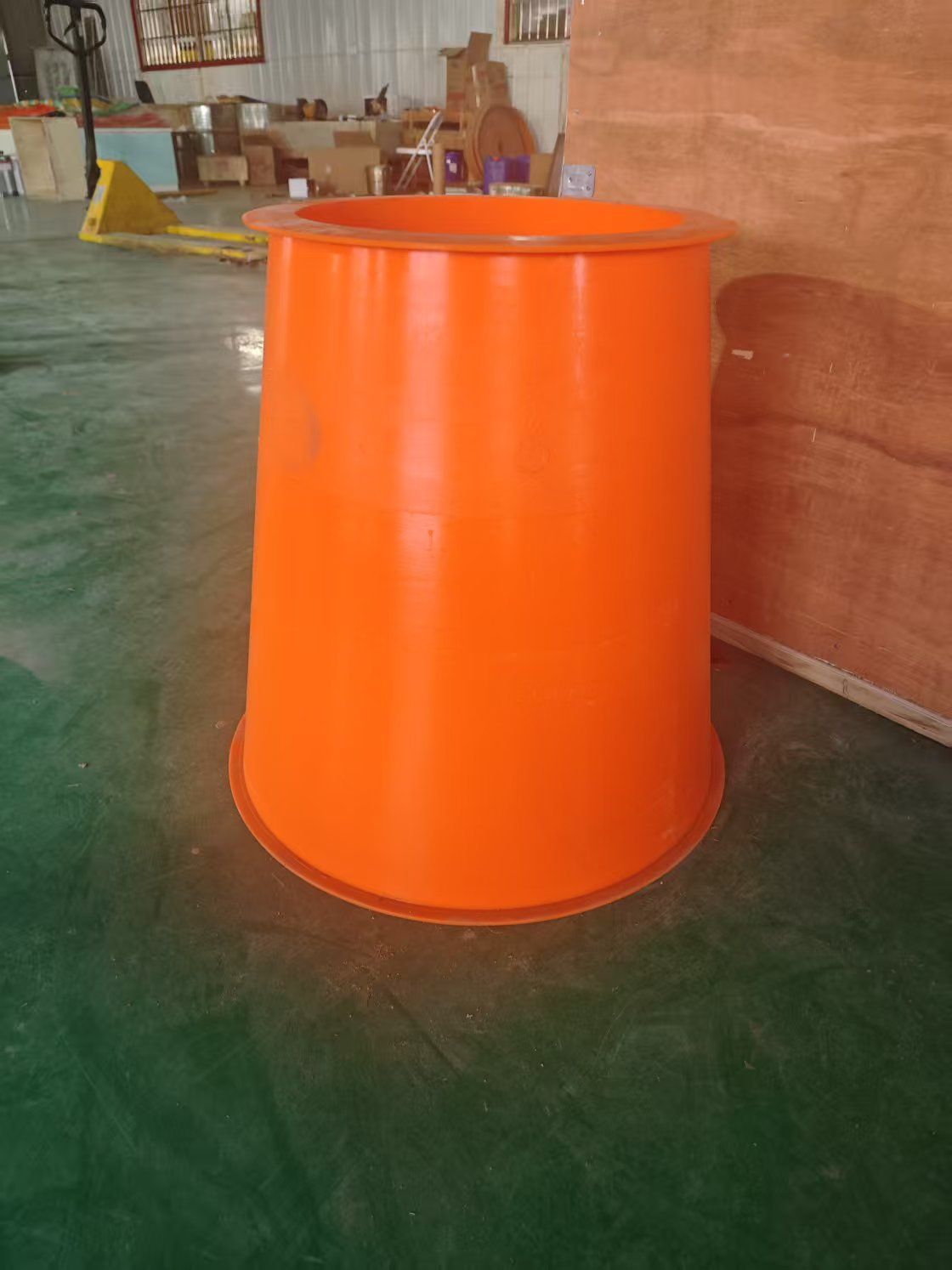

Hydrocyclone Apex & Spigot Insert
Material: Polyurethane (PU) Lined & Carbon Steel Shell
Capacity: 10–600 m³/hClassification Efficiency: 82%–96%Inlet Pressure: 0.08–0.55 MPa
Cut Size: 3μm–300μm
Service Life: 6–12 months
Color: Orange, Red, Customized
Standard Diameter: 100mm–800mm
Custom Size: Acceptable
Application: Mining classification, desliming, dewatering, tailings recovery
Payment Terms: T/T, PayPal.
Shipping Options: FedEx, DHL, UPS, Air Freight, Sea Freight, Train, Truck
Terms: EXW, FOB, CIF, DDU, DDP
Hydrocyclone Apex & Spigot Insert
High Efficiency Classification | Desliming | Dewatering Solutions
Product Information

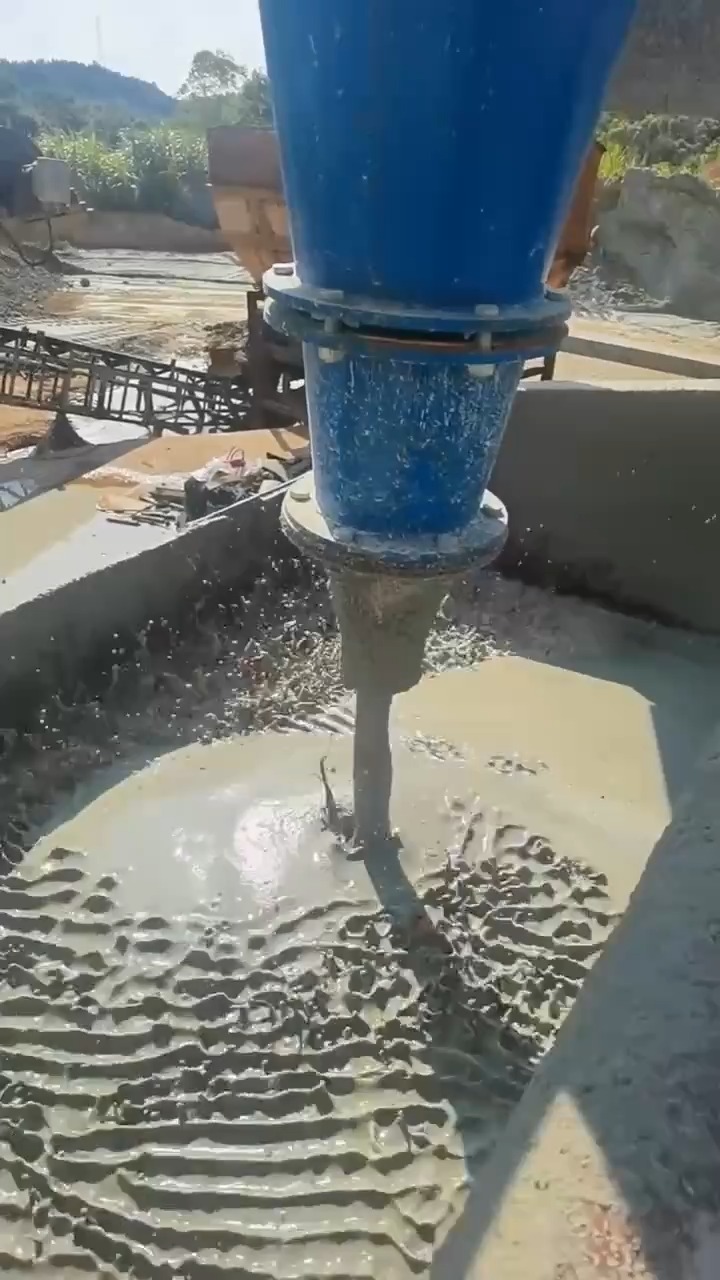

HUATAO Hydrocyclone Apex & Spigot Inserts are designed for reliable underflow control in demanding mineral processing and slurry classification applications. Located at the bottom discharge of the hydrocyclone, the apex is continuously exposed to high-velocity abrasive particles and is therefore one of the most critical wear components. HUATAO offers customized apex inserts in polyurethane, wear-resistant rubber, high alumina ceramic and silicon carbide to suit different abrasion, impact and corrosion conditions. Accurate bore dimensions help maintain stable underflow geometry and consistent cyclone performance throughout service life. Our hydrocyclone spigots are widely used in iron ore, gold, copper, lithium, coal, mineral sands, aggregates and tailings processing. OEM-compatible replacements can be manufactured according to drawings, samples, dimensions and operating requirements.
Hydrocyclones Type
advantage
The cost effective performance makes hydrocyclones widely applicable in small medium and large scale mines quarries and beneficiation plants.
Parallel installation design allows users to expand processing capacity easily by adding more units without changing the original system structure.
High-efficiency dewatering mineral hydrocyclones act as stable static separation devices designed to apply centrifugal force for precise classification effective dewatering and complete desliming for mineral slurries. As essential mining equipment they separate valuable minerals including gold copper and iron from waste materials based on particle size and density differences.
Technical Specifications (Typical Range)
| Model | Diameter (mm) | Capacity (m³/h) | Feed Size (mm) | Cut Size (μm) | Pressure (MPa) |
|---|---|---|---|---|---|
| FX100 | 100 | 5–12 | ≤1 | 10–40 | 0.1–0.3 |
| FX250 | 250 | 40–90 | ≤3 | 30–100 | 0.1–0.3 |
| FX500 | 500 | 140–250 | ≤10 | 50–150 | 0.06–0.2 |
| FX840 | 840 | 420–850 | ≤18 | 74–350 | 0.04–0.15 |
