Mn13 Mn18 Jaw Plate For Primary Crushing High Impact Resistance Quarry Equipment
Screening situation: Coarse,medium,fine,and semi-automatic mill discharge
Package: Carton Box or Wooden Box
Payment Terms: T/T, Paypal.
Shipping Options: FedEx, DHL, UPS, Air Freight, Sea Freight, Train, Truck
Terms: EXW, FOB, CIF, DDU, DDP
Mining Crushing Wear Parts
Combined Jaw Plate + Blow Bar + Mantle & Concave
Product Information
Jaw crusher jaw plates are engineered to deliver strong compressive crushing force for hard rock applications. Combined with cone crusher mantles and impact crusher blow bars, these wear parts form a complete crushing solution for mining and aggregate industries. The components are designed for high wear resistance and stable performance under heavy-duty working conditions. High manganese steel jaw plates provide superior impact absorption, while high chrome blow bars offer excellent abrasion resistance for limestone and recycling applications. Mantle and concave sets are precision cast to maintain optimal cavity geometry and improve particle shape quality. Custom sizes and OEM compatibility are available for major crusher brands.
Product Selection Guide
HUATAO GROUP supplies a complete range of premium crusher wear parts including:
- Jaw Crusher Jaw Plates
- Impact Crusher Blow Bars
- Cone Crusher Mantle & Concave
Manufactured with high manganese steel, high chrome iron, alloy steel, and composite materials, our wear parts are engineered for high abrasion resistance, impact toughness, and long service life under demanding working conditions.
| Wear Part | Crusher Type | Recommended Material | Suitable Material |
|---|---|---|---|
| Jaw Plate | Jaw Crusher | Mn18Cr2 | Granite Hard Ore |
| Mantle & Concave | Cone Crusher | Mn22Cr2 | Medium-High Hardness Ore |
| Blow Bar | Impact Crusher | High Chrome Iron | Limestone Concrete |
1. Jaw Crusher Jaw Plate
Application
Used in jaw crushers for primary crushing of hard rocks and ores through compressive force.
Advantages
- Excellent wear resistance
- Optimized tooth profile improves crushing efficiency
- Reduces vibration and operating noise
- Extends replacement cycle
- Improves material gripping performance
Common Materials
- Mn13
- Mn18Cr2
- Alloy steel
- Composite high chrome inserts
Technical Specifications
| Parameter | Range |
|---|---|
| Thickness | 50-250 mm |
| Length | 300-2500 mm |
| Tooth Height | 20-100 mm |
| Hardness | 200-400 HB |
| Tensile Strength | ≥850 MPa |
2. Impact Crusher Blow Bar
Application
Installed on impact crusher rotors for crushing limestone, concrete, asphalt, and construction waste.
Advantages
- High impact toughness
- Strong fracture resistance
- Large reduction ratio
- Uniform product size
- Easy replacement
- Low maintenance cost
Common Materials
- High Chrome Iron Cr15-Cr26
- High manganese steel
- Alloy steel
- Ceramic insert composite
Technical Specifications
| Parameter | Range |
|---|---|
| Length | 200-1800 mm |
| Width | 100-400 mm |
| Thickness | 50-200 mm |
| Weight | 5-200 kg |
| Hardness | 50-62 HRC |

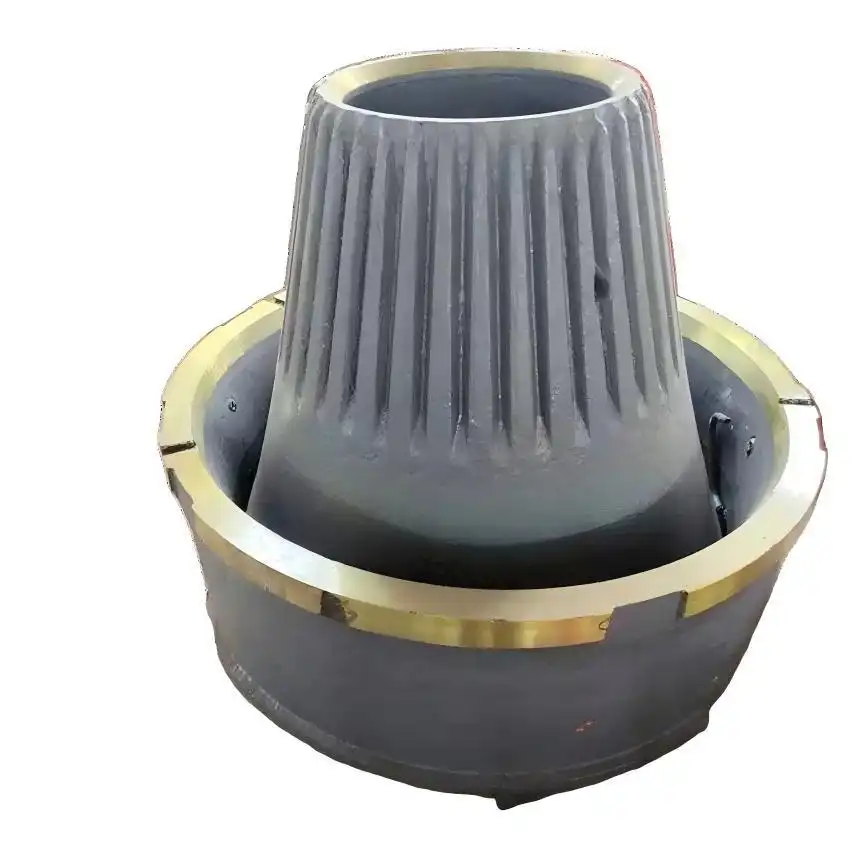

3. Cone Crusher Mantle & Concave
Application
Used in cone crushers for secondary and tertiary crushing of medium and high hardness materials.
Advantages
- Precision casting technology
- Stable cavity geometry
- Uniform wear distribution
- Better particle shape
- Reduces flaky particles
- High throughput efficiency
Common Materials
- Mn18Cr2
- Mn22Cr2
- Ultra-high manganese steel
- Mo/Ni alloy steel
Technical Specifications
| Component | Diameter | Weight | Hardness |
|---|---|---|---|
| Mantle | 300-2000 mm | 50-5000 kg | 220-380 HB |
| Concave | 500-2500 mm | 100-8000 kg | 220-380 HB |
