Cross Belt Electromagnetic Separator
Screening situation: Coarse,medium,fine,and semi-automatic mill discharge
Package: Carton Box or Wooden Box
Payment Terms: T/T, Paypal.
Shipping Options: FedEx, DHL, UPS, Air Freight, Sea Freight, Train, Truck
Terms: EXW, FOB, CIF, DDU, DDP
Cross Belt Electromagnetic Separator
Product Information
HUATAO Cross Belt Electromagnetic Separator is engineered for automatic separation of ferrous contaminants from materials moving on industrial conveyor systems. The separator is typically suspended across the main conveyor, where its electromagnetic field attracts tramp metal from the material burden. A reinforced self-cleaning belt with discharge cleats continuously carries captured steel toward the side of the conveyor for automatic release. This configuration is ideal for high-throughput applications where frequent manual magnet cleaning would interrupt production. HUATAO Cross Belt Magnetic Separators are suitable for mining, aggregate processing, coal handling, recycling, cement and bulk material industries. Separator dimensions, magnetic performance, belt design, cooling system and electrical configuration can be customized according to actual conveyor and material conditions.
How Does a Cross Belt Magnet Work?
The separator is normally installed perpendicular to the main conveyor belt.
When bulk material enters the magnetic field, ferrous objects such as bolts, nails, steel wire, rebar, tools and machinery fragments are attracted upward toward the magnet.
A heavy-duty cleaning belt continuously travels around the magnetic assembly. Cleats on the belt transport captured metal toward the side of the conveyor.
Once the metal moves beyond the effective magnetic field, it is automatically discharged.
This design enables continuous tramp iron removal without stopping the main conveyor.
Technical Specifications
| Parameter | Specification / Option |
|---|
| Product Type | Self-Cleaning Cross Belt Magnetic Separator |
| Magnet Type | Electromagnetic |
| Installation | Suspended Cross-Belt |
| Cleaning | Continuous Automatic Discharge |
| Main Conveyor Width | Customized |
| Magnetic Strength | Application Specific |
| Suspension Height | Customized |
| Cooling | Air-Cooled / Oil-Cooled Options |
| Cleaning Belt | Reinforced Heavy-Duty Rubber Belt |
| Belt Cleats | Wear-Resistant Discharge Cleats |
| Drive System | Electric Motor with Reducer |
| Duty | Continuous Operation |
| Electrical Supply | Customized |
| Installation Support | Customized Frame / Suspension Arrangement |

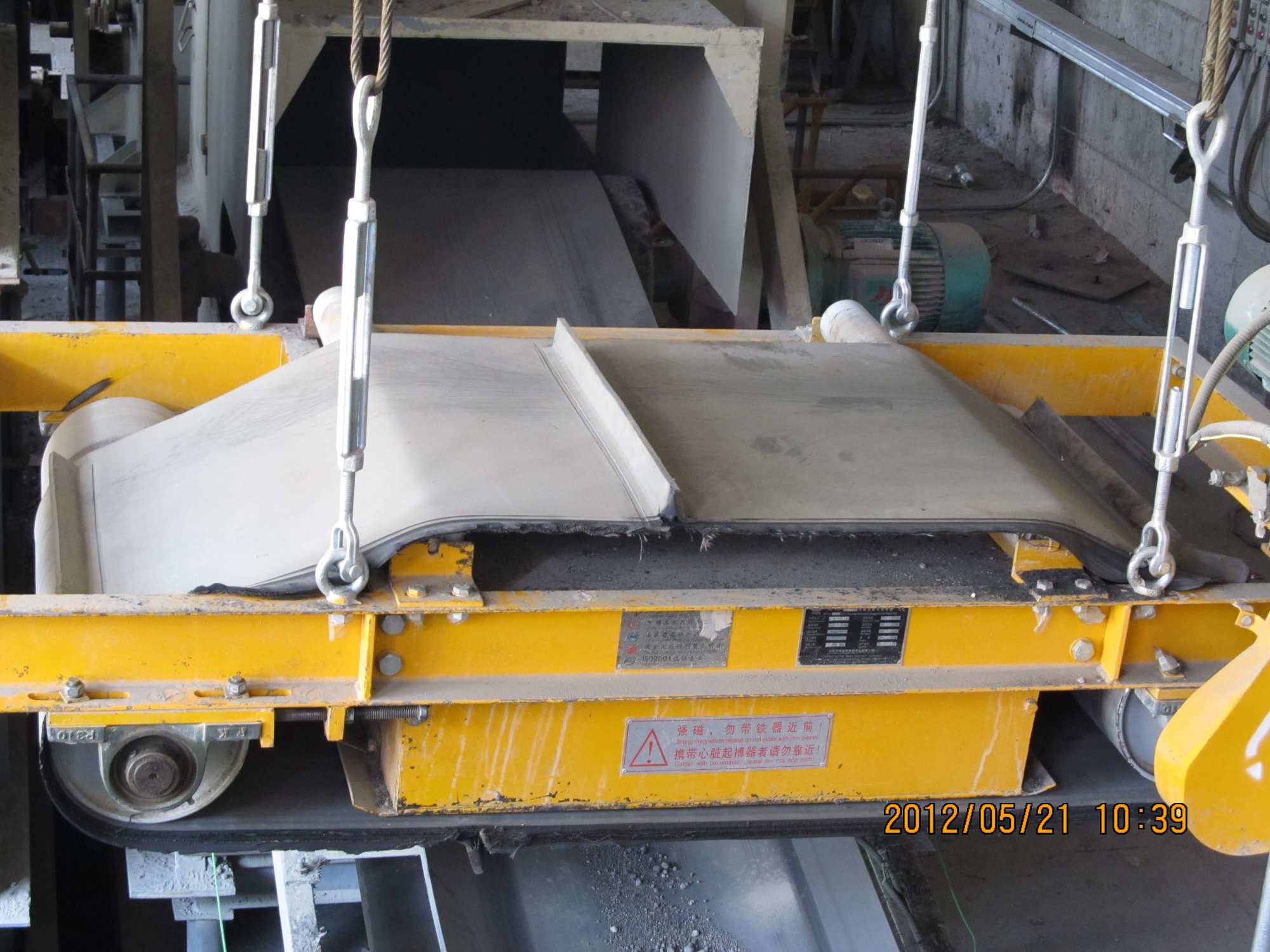

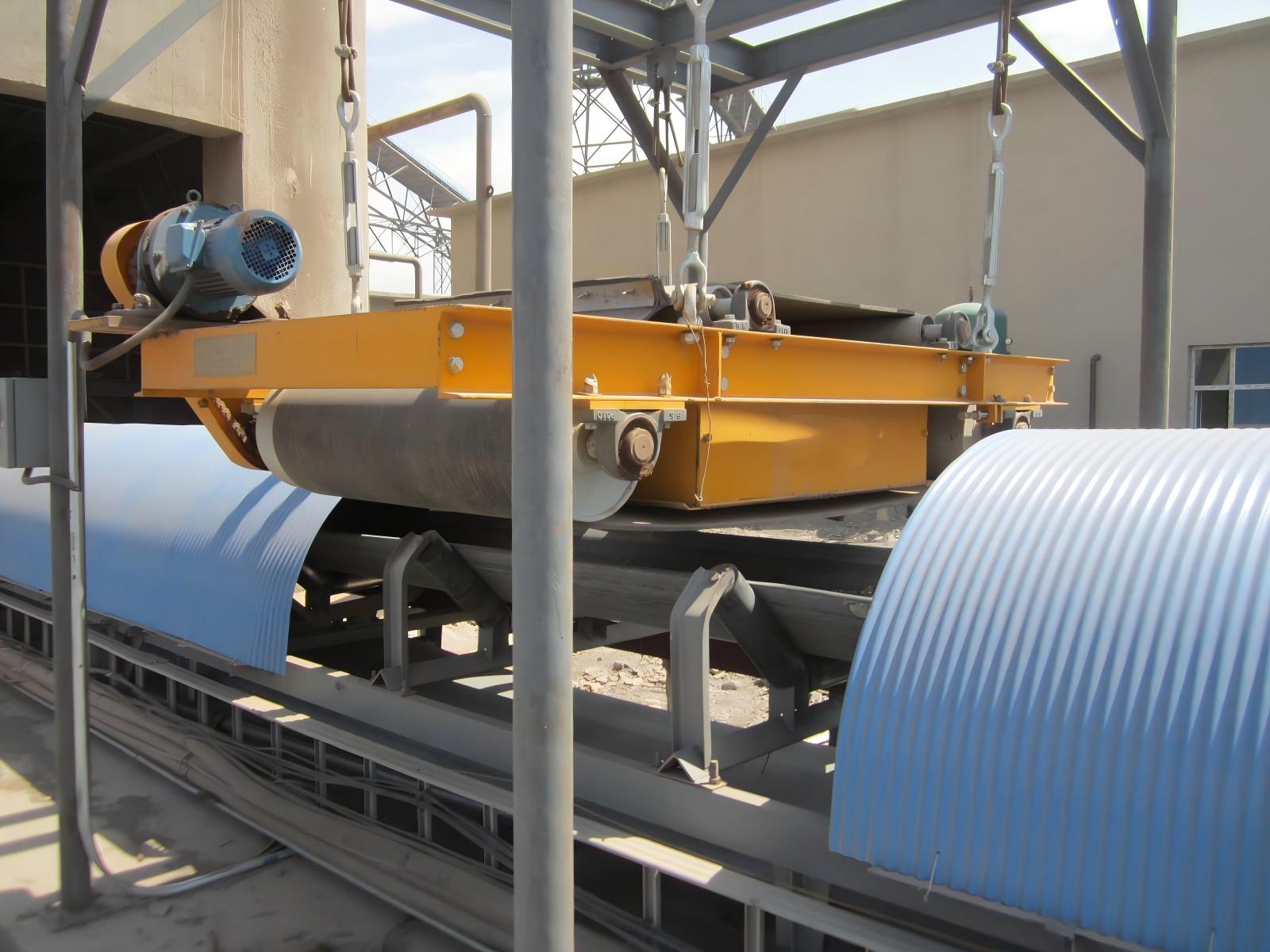

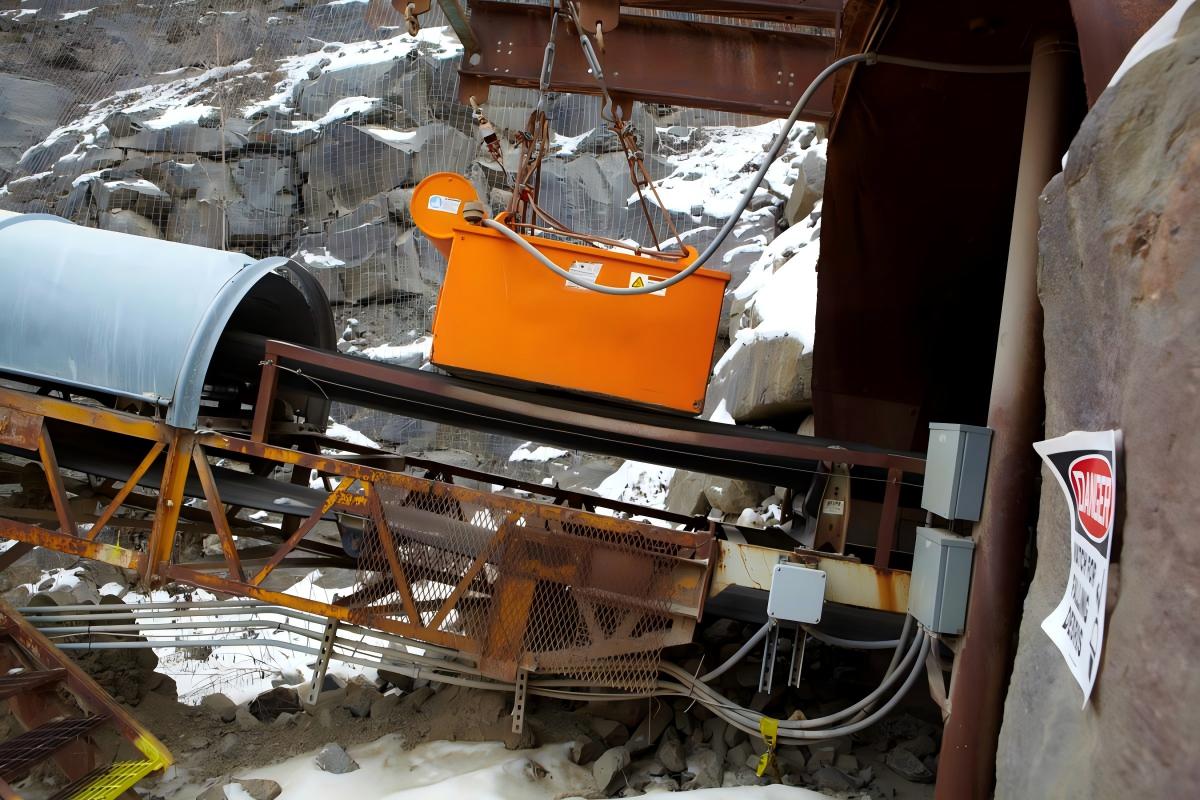

Conveyor Belt Product show
