Industrial Overband Magnet for Bulk Material Handling
Screening situation: Coarse,medium,fine,and semi-automatic mill discharge
Package: Carton Box or Wooden Box
Payment Terms: T/T, Paypal.
Shipping Options: FedEx, DHL, UPS, Air Freight, Sea Freight, Train, Truck
Terms: EXW, FOB, CIF, DDU, DDP
Industrial Overband Magnet for Bulk Material Handling
Product Information
HUATAO Industrial Overband Magnet is a heavy-duty magnetic separation solution for removing tramp iron from continuously conveyed bulk materials. Suitable for mining, ports, cement plants, power generation, aggregates, recycling and biomass handling, the system helps separate harmful ferrous objects before they reach downstream processing equipment. The strong suspended magnetic field attracts bolts, steel fragments, wire, rebar and other tramp metal, while the self-cleaning discharge belt automatically carries captured material away from the conveyor. This combination provides continuous separation with reduced manual intervention and helps improve equipment reliability. HUATAO can customize the magnetic separator according to conveyor width, belt speed, material depth, bulk density, capacity, suspension height, installation arrangement and electrical requirements.
How Does a Cross Belt Magnet Work?

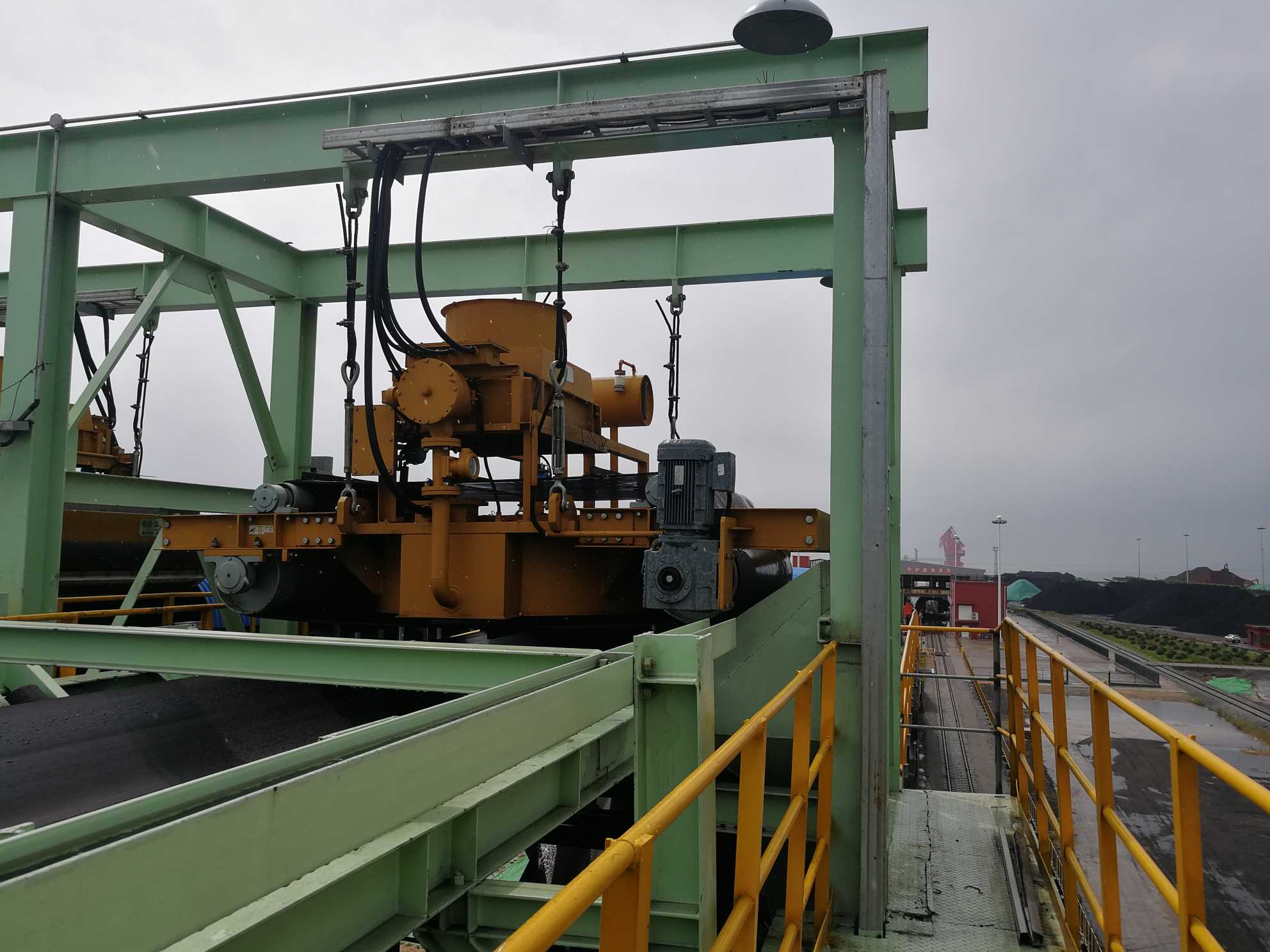

The separator is normally installed perpendicular to the main conveyor belt.
When bulk material enters the magnetic field, ferrous objects such as bolts, nails, steel wire, rebar, tools and machinery fragments are attracted upward toward the magnet.

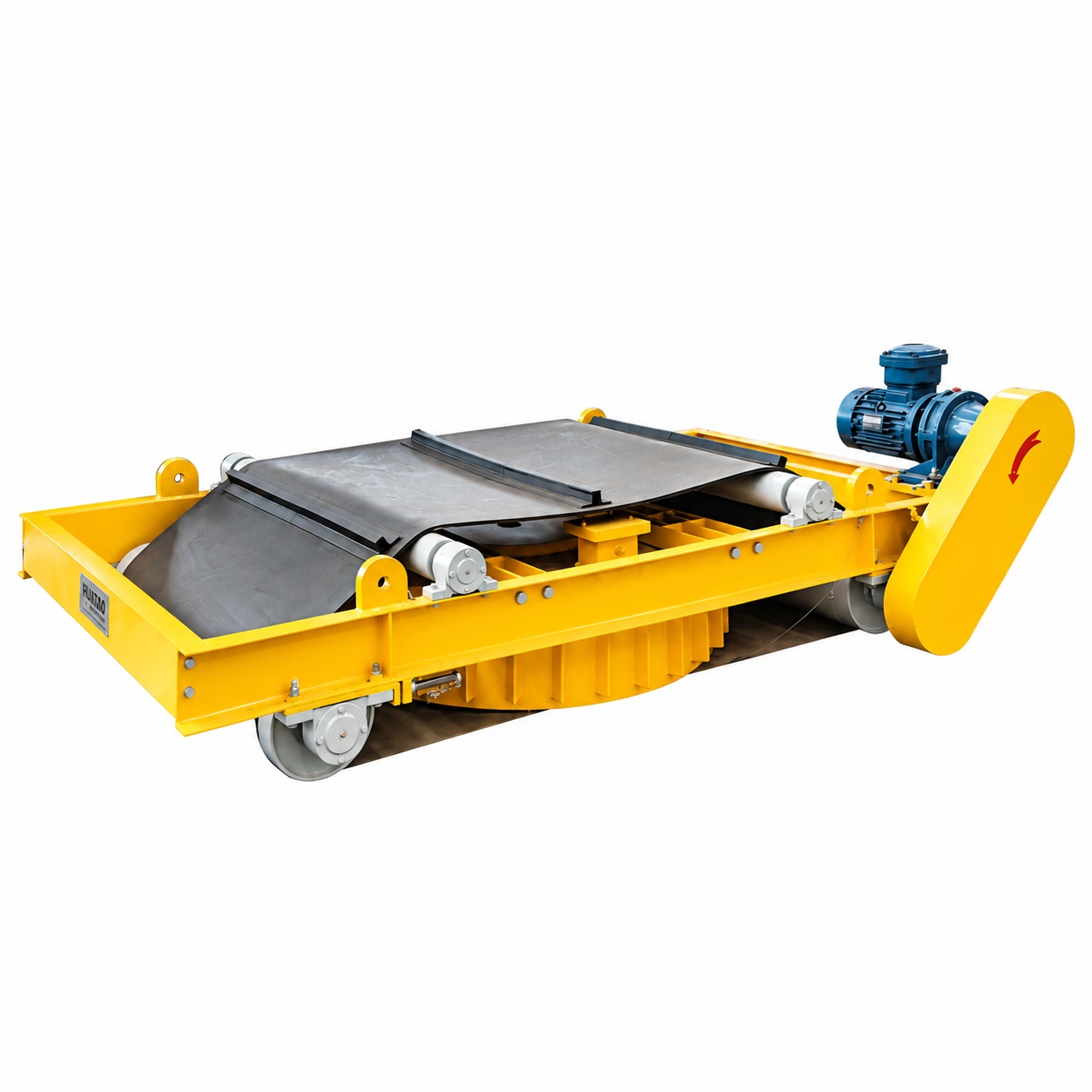

A heavy-duty cleaning belt continuously travels around the magnetic assembly. Cleats on the belt transport captured metal toward the side of the conveyor.
Once the metal moves beyond the effective magnetic field, it is automatically discharged.
This design enables continuous tramp iron removal without stopping the main conveyor.
Technical Specifications
| Parameter | Specification / Option |
|---|
| Product Type | Self-Cleaning Cross Belt Magnetic Separator |
| Magnet Type | Electromagnetic |
| Installation | Suspended Cross-Belt |
| Cleaning | Continuous Automatic Discharge |
| Main Conveyor Width | Customized |
| Magnetic Strength | Application Specific |
| Suspension Height | Customized |
| Cooling | Air-Cooled / Oil-Cooled Options |
| Cleaning Belt | Reinforced Heavy-Duty Rubber Belt |
| Belt Cleats | Wear-Resistant Discharge Cleats |
| Drive System | Electric Motor with Reducer |
| Duty | Continuous Operation |
| Electrical Supply | Customized |
| Installation Support | Customized Frame / Suspension Arrangement |
